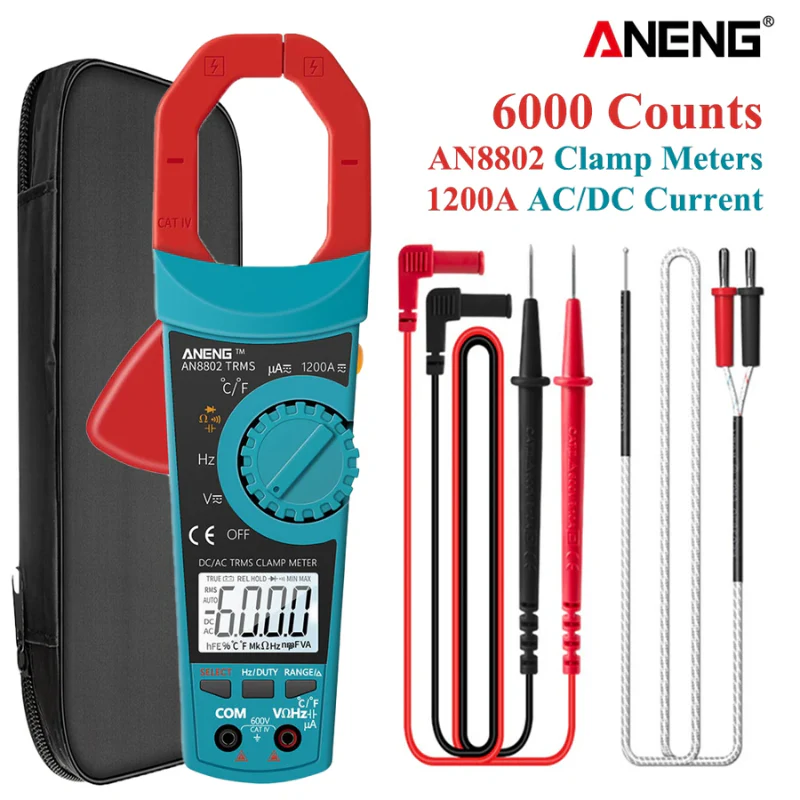

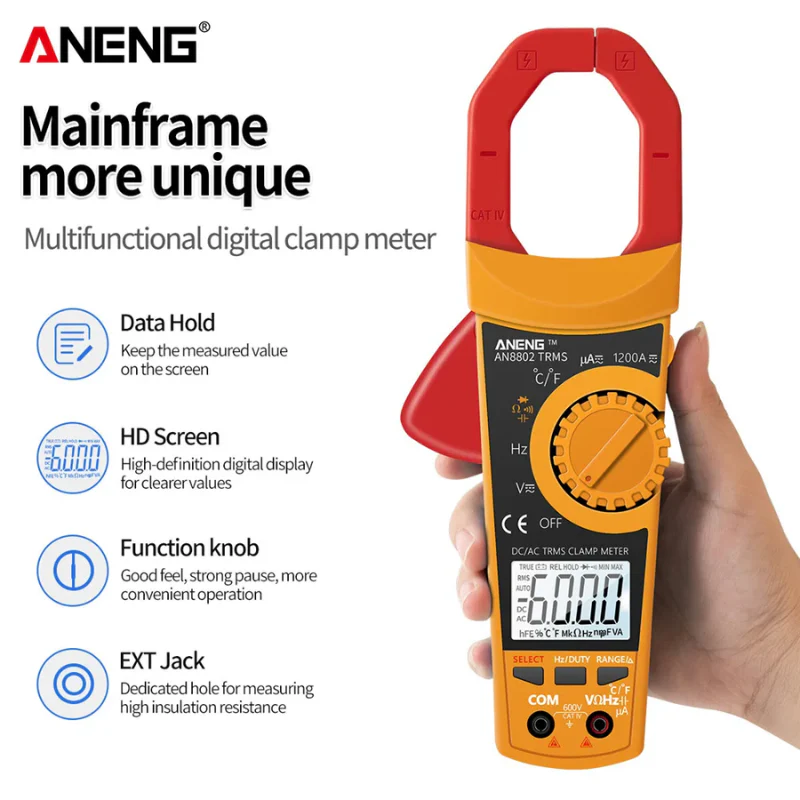

ANENG AN8802 Digital Smart Multimeter 1200A True RMS Clamp Meters AC/DC Current Tester Electric Ampere Frequency Voltmeter Tool

ANENG AN8802

Features:

• Auto/manual intervals.
• True RMS measurement.
• 550V protection across resistance and capacitance ranges.
• Large LCD screen, maximum display 6000 counts.
• Sample rate: 3 times per second.
• Backlight
• Data retention
• Polarity identification
• Low voltage indicator
• 1200A high current measurement, low current measurement
• Auto shut off
• Main measurements: AC/DC voltage, AC/DC current, resistance, capacitance, diode and continuity test, temperature, frequency and duty cycle.

Specifications:

• Frequency: 5/50/500/5k/50k/500k/5M/10M (±0.1+3)
• Temperature: <400℃±(1.0%+5%); ≥ 400℃±(1.5%+15); <752 ℉ ±(1.0% + 5), ≥ 752 ℉ ±(1.5% + 15)
• Capacity: 10nF(±5.0 + 20),100nF/1uF/10uF/100uF(±2.0% + 5),1000uF/10000uF(±5.0% +5)
• DC volts: 600mV(±1.0% + 10), 6V/60V/600V/1000V(± 0.5% + 3)
• AC volts: 600mV(±3.0% + 3),6V/60V/600V/750V(±1.0% +3)
• ACA/DCA:600uA/6000uA(±0.8%+10),60A/600A/1200A(±2%+30)
• Resistance: 600Ω(±0.5%+3),6K/60K/600K/6M(±0.5%+2),60MΩ(±1.5%+3)
• Duty cycle: 1% to 99%(±1%)
• Measurement mode: double integral style A/D conversion
• Overrange indication: OL
• Working environment: 0 ~ 40 ℃, relative humidity <80%
• Power supply: 9V battery (not included)
• Frequency: 1Hz to 10MHz
• Temperature: -20℃ to 1000℃(-4℉ to 1832℉)
• Capacity: 10pF to 6000uF
• AC volts: 0.1mV to 750V
• DC volts: 0.1mV to 1000V
• AC current: 0.1uA to 1200A
• DC current: 0.1uA to 1200A
• Resistance: 0.1Ω to 60MΩ
• Duty cycle: 1% to 99%
• Size: approx. 238*90*45mm/9.37*3.54*1.77”

Package includes:

• 1 x Multimeter
• 2 x Test leads
• 1 x Temperature sensor cable
• 1 x Storage bag
• 1 x User manual
